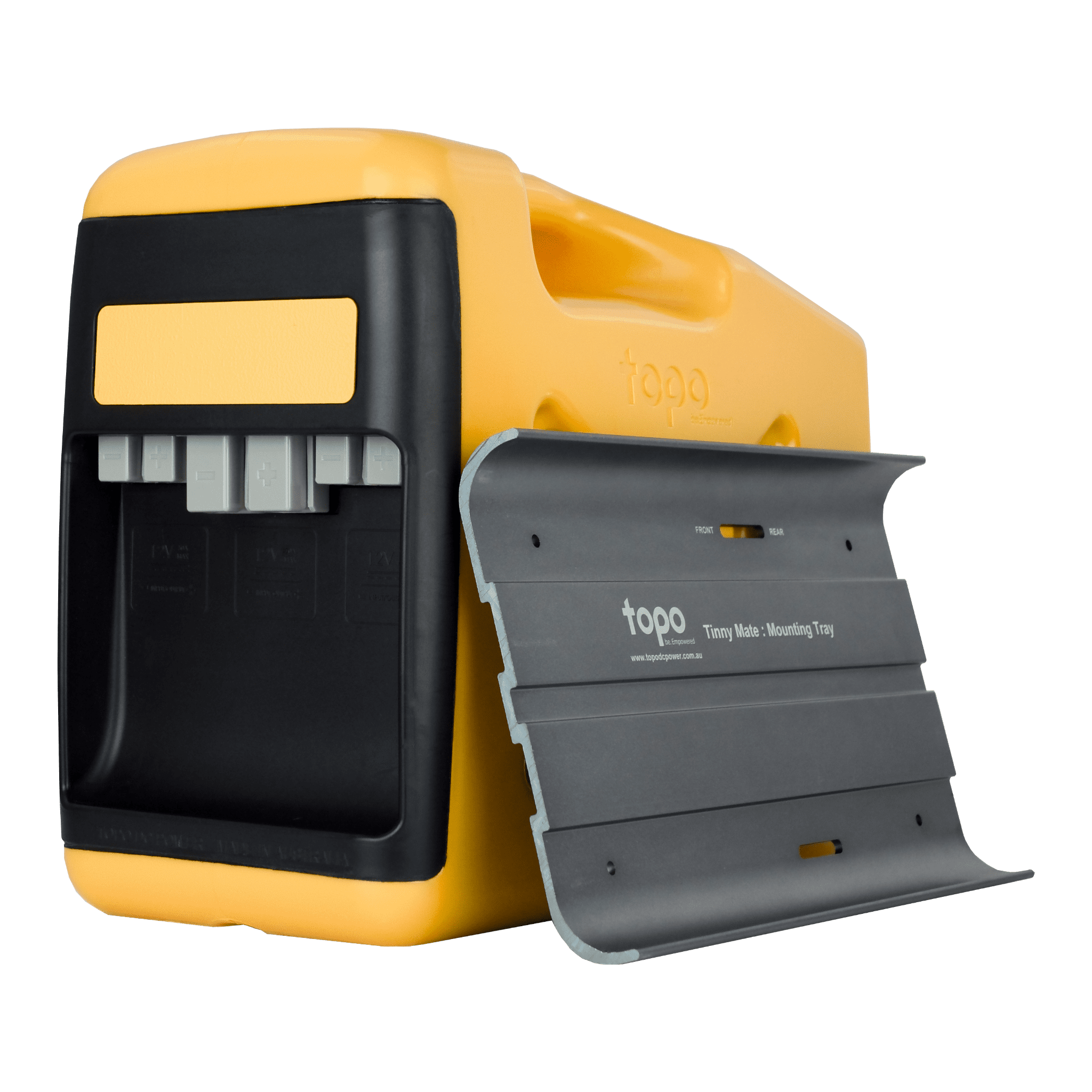

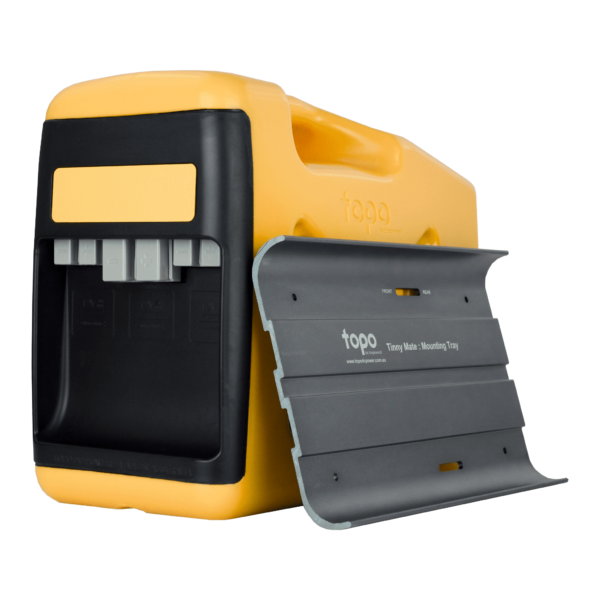

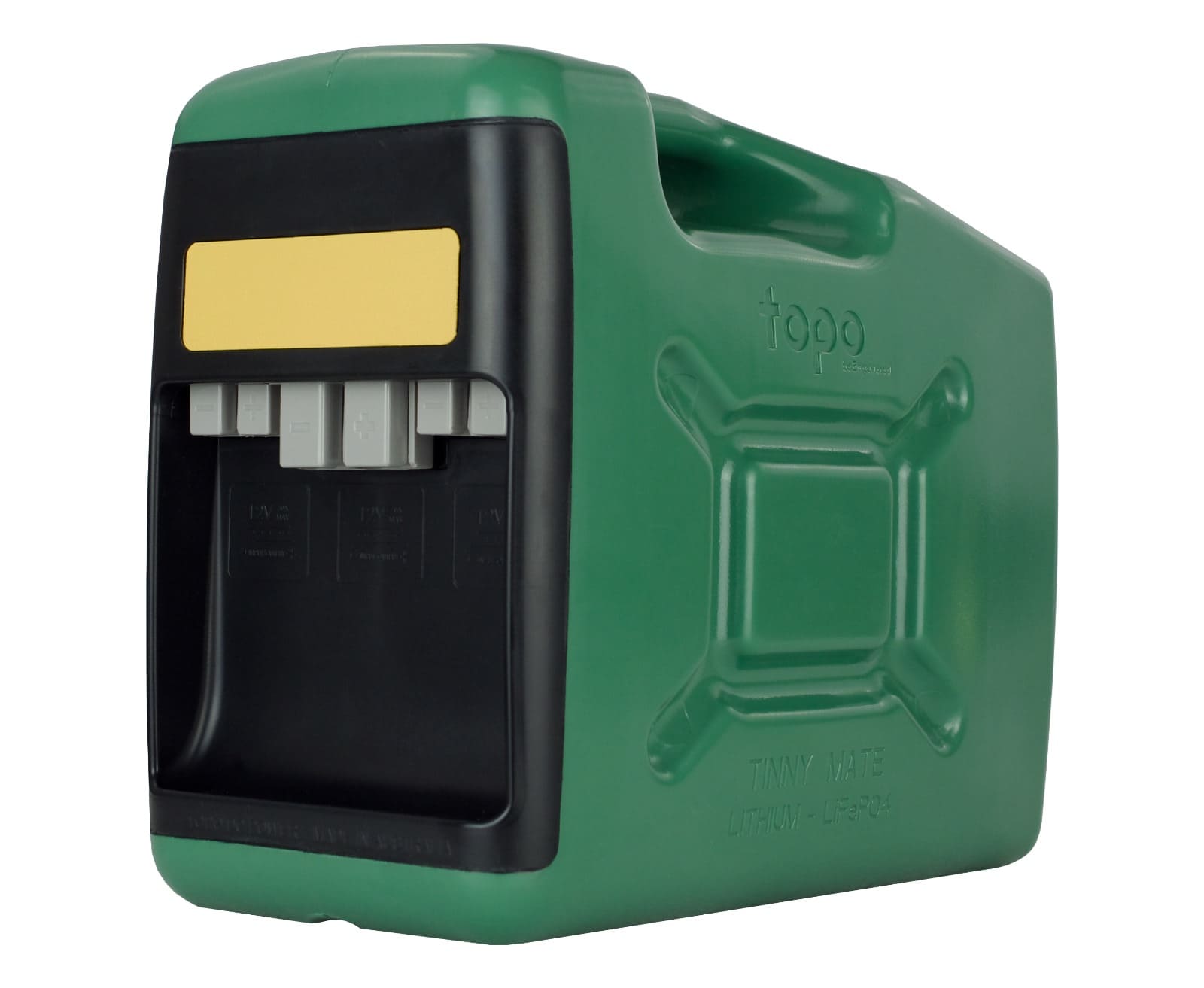

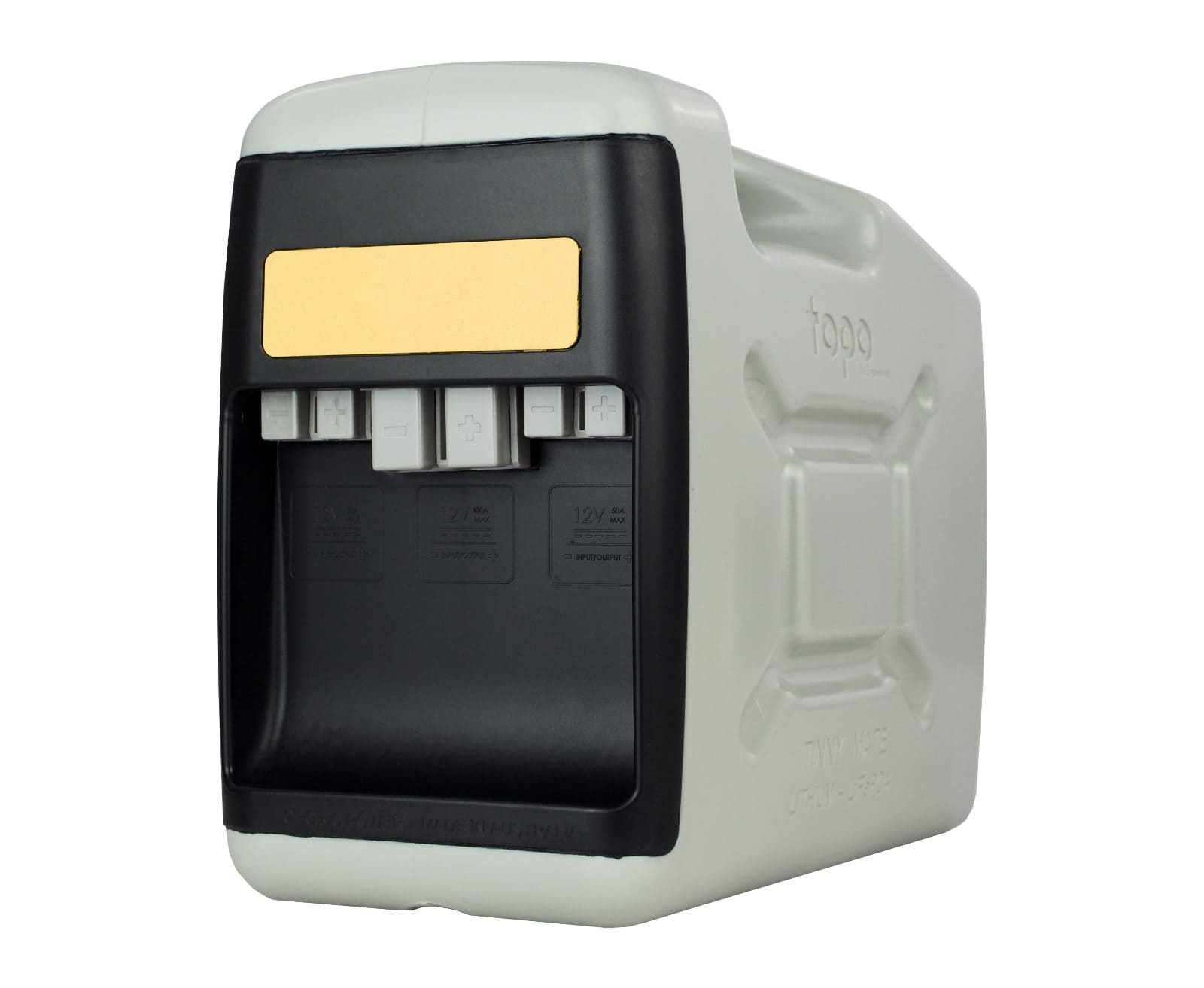

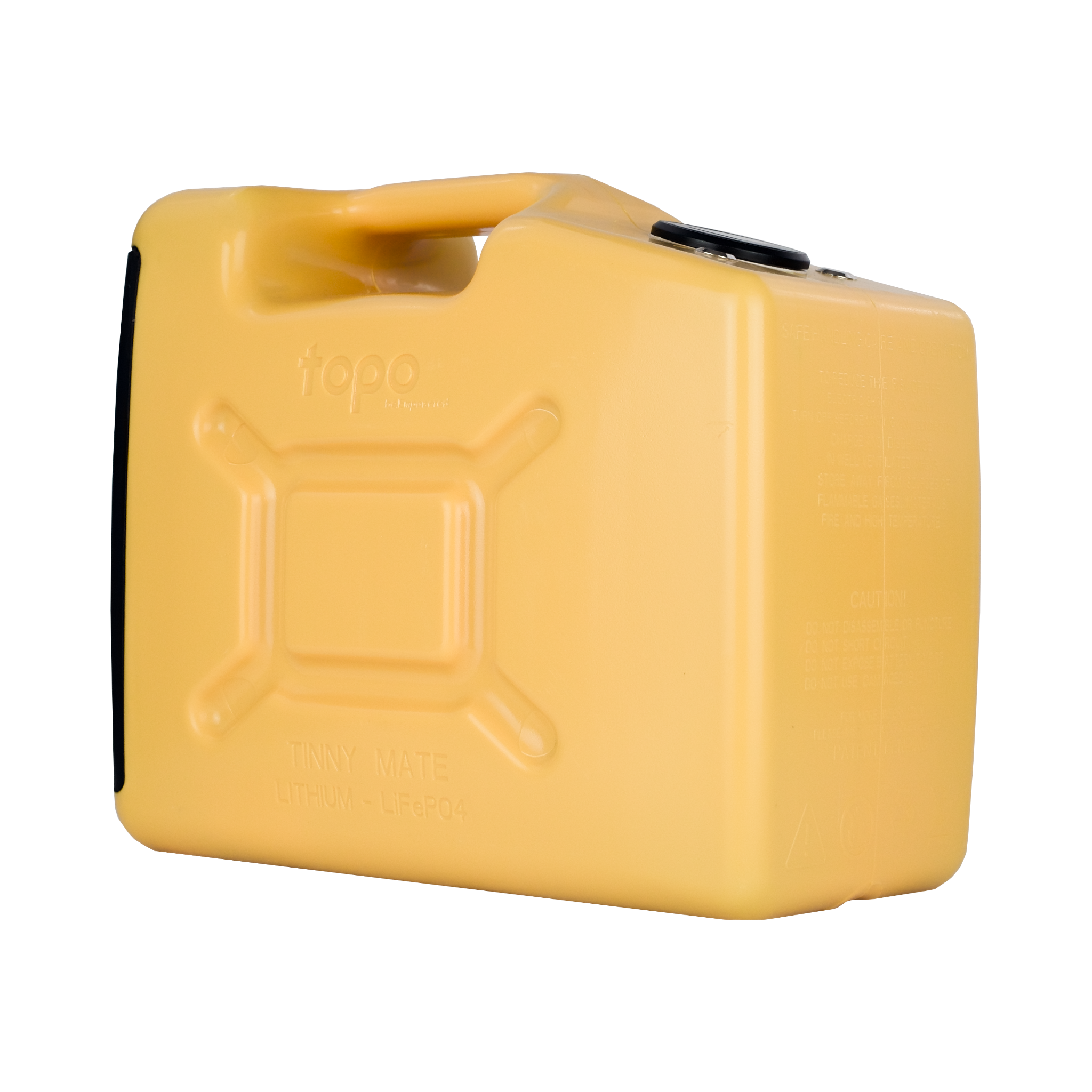

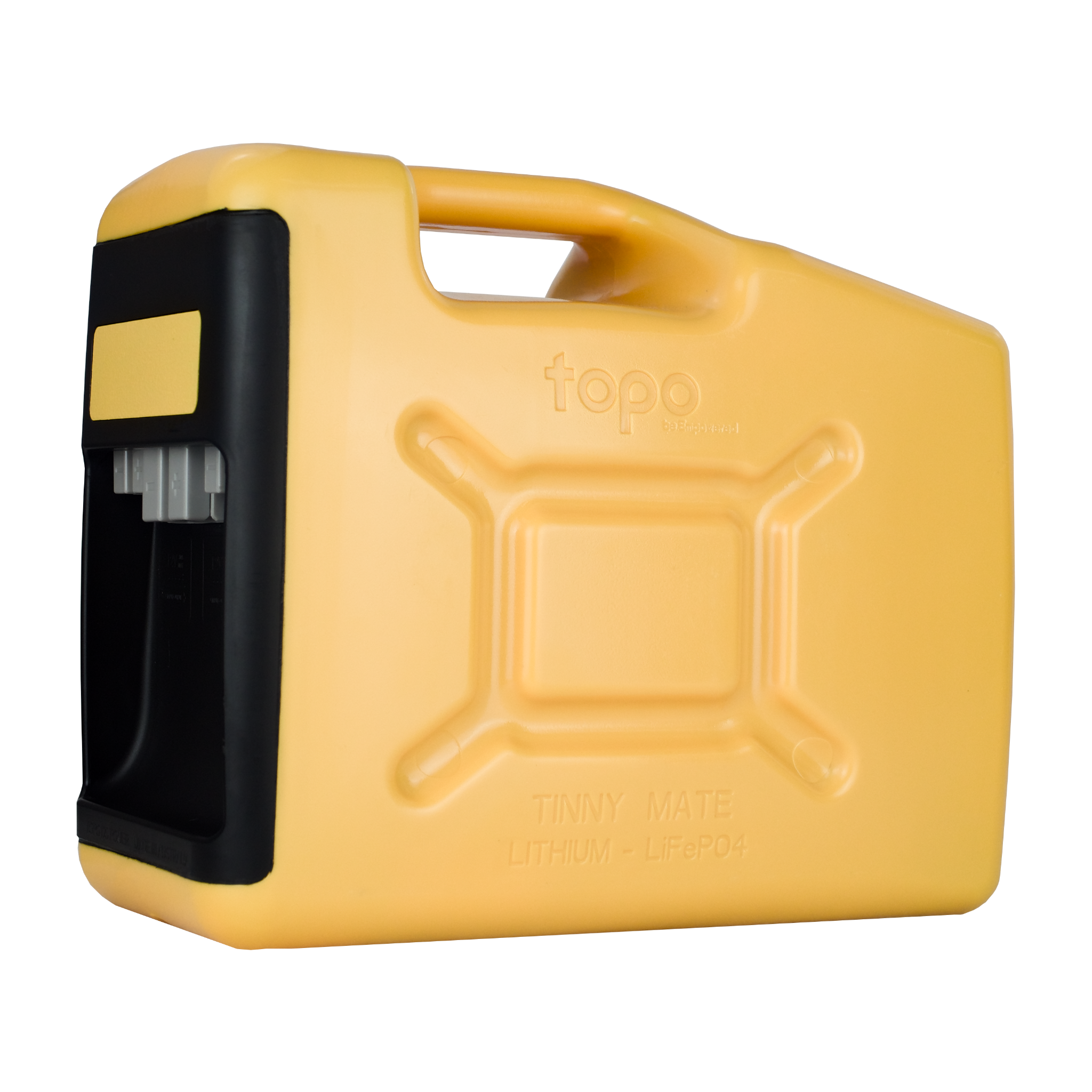

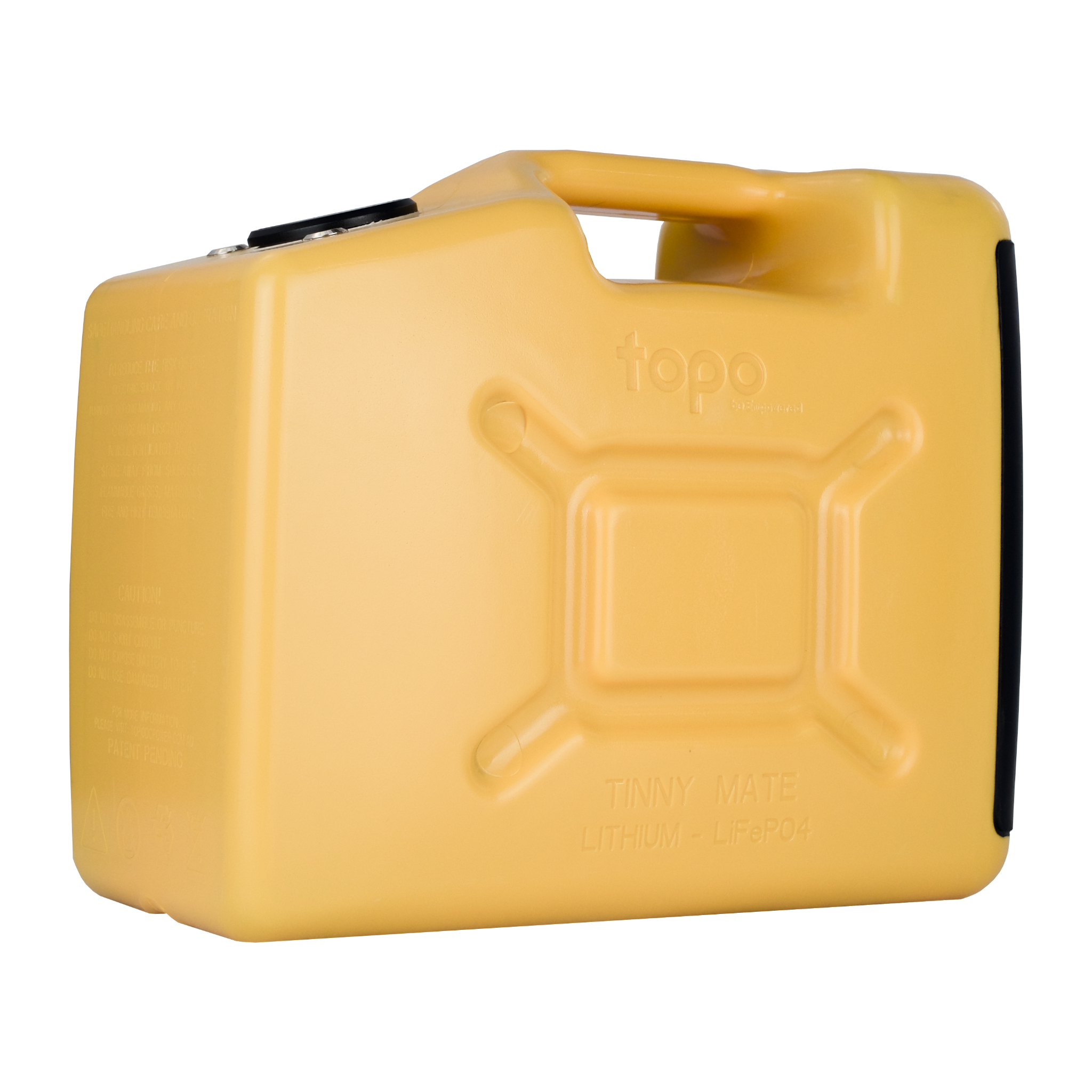

Tinny Mate
$950.00
Tax included. Shipping calculated at checkout.
DIMENSIONS
H- 240mm
L – 265mm
W – 145mm
FEATURES
- A TRUE PLUG & PLAY PORTABLE POWER SOLUTION
- PATENT PENDING & INTERNATIONAL REGISTERED DESIGN
- AUSTRALIAN OWNED MADE AND DESIGNED
- A GRADE LIFEPO4, PRISMATIC CELLS- IEC 62619 COMPLIANT
- POWERFUL AND PORTABLE, 12V/100AH , 1280Wh @ 10Kg’s
- SEALED IN A HIGH IMPACT, UV RESISTANCE, WATERPROOF CASING
- ACCEPTS 3 WAY CHARGING MAINS, SOLAR, VEHICL

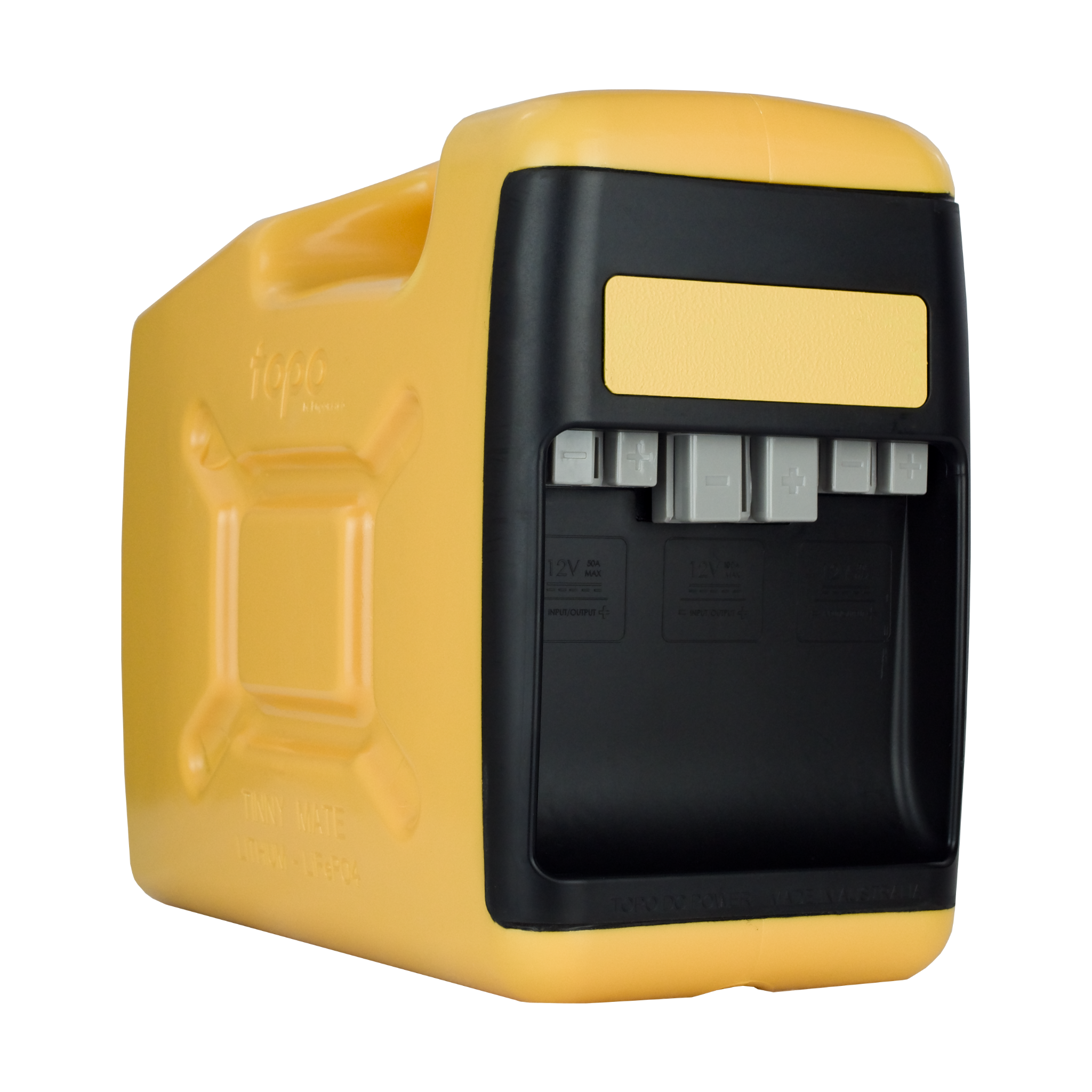

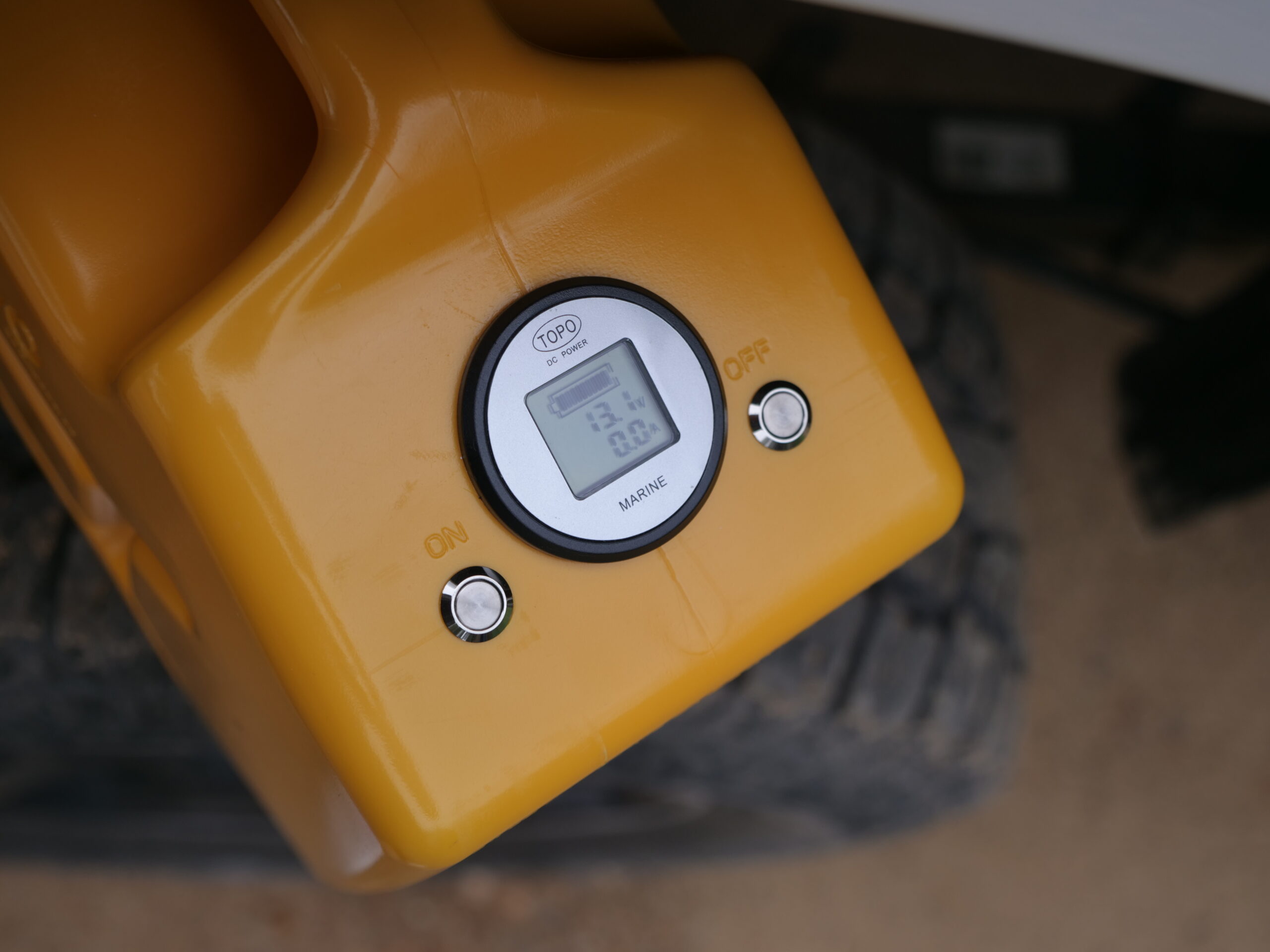

CONNECTOR AND DISPLAY
Power
- Waterproof On/Off button switch
- Display : Waterproof LCD display
- Built-In, State of Charge monitoring
- Built-In, Volt & Amp monitoring
- Built-In, Charge & Discharge status
Input / Output
- Anderson 12V / 50A (Grey)
- Anderson 12V / 50A (Grey)
- Anderson 12V / 120 A (Grey)
ELECTRICAL PARAMETERS
- Nominal Voltage 12.8V DC
- Rated Capacity 100Ah
- Energy 1280Wh
- Cycle life >3000 cycles @ 1C, 80%DOD
- Self Discharge < 5% per month
- Battery in Series / Parallel 2S/2P
- IP Rating IP66
DISCHARGE PARAMETERS
- Standard Continuous Discharge Current 50A -100A Max
- Pulse Discharge Curent 200A (<30Sec)
- Recommended Volt. Disconnect 12V
- Discharge Temperature -20 – 60°C
- BMS Low Volt. Cut-off 11V DC
- BMS High Temperature cut-off 65°C
CHARGE PARAMETERS
- Standard Charge Current 50A – 100A Max
- Recommended Volt. Disconnect 14.2V DC
- Charging Temperature 0 – 55°C
- BMS High Volt. Cut-off 14.2V DC
- BMS High Temperature cut-off 65°C
