Tinny Mate + Fridge Mate Pocket 6A DC/DC Charger

$1,250.00

Tax included. Shipping calculated at checkout.

TOPO Tinny Mate, Heavy Duty Plug & Play  12V/100AH LiFEPO4, sealed battery with advanced built-in battery monitoring.

TOPO Fridge Mate Pocket 6A DC/DC Charger

Ideal for charging the Topo Tinny Mate Portable lithium battery from any 10A continuous rated socket. Most if not all common 12v accessory sockets found in all modern make and model vehicles straight off the factory production line.

The Tinny Fridge Mate is a Plug & Play handy pocket-sized dual battery system, without needing to run a permanent aftermarket-rated charge cable.

You are now able to fully charge your second battery used to power your 12v fridge or electronic accessories without interruption and piece of mind having no risk of drawing down your starter battery under the vehicle bonnet and the freedom to take charge with you on every adventure.

Topo’s Tinny Fridge Mate 6A charge rate is enough to offset efficient 12v Fridge draw still able to supply a constant charge rate while you drive comparable to 120watts of Solar in perfect conditions.

Max draw: 7.5A

Max charge: 6.5A

IMPORTANT NOTE:

If the vehicle’s ignition is left ON when the engine is not running. The Fridge Mate Pocket DCDC will continue to deliver charge to the Tinny Mate and will not be isolated. This may cause the Fridge Mate Internal 7.5A fuse to protect and stop all charges to the Tinny Mate until the Fuse has been replaced.

Caution: Having your vehicle’s ignition accessories mode active can cause your Vehicles Starter battery to go flat and comparable to keeping your AC, Fan, Headlights and radio or charging mobiles while your Engine and Alternator are not keeping your Starter battery healthy.

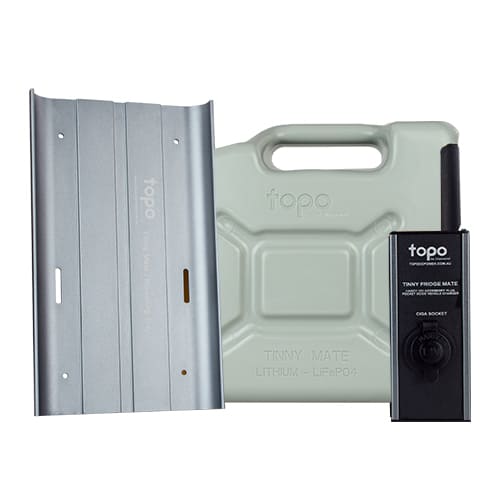

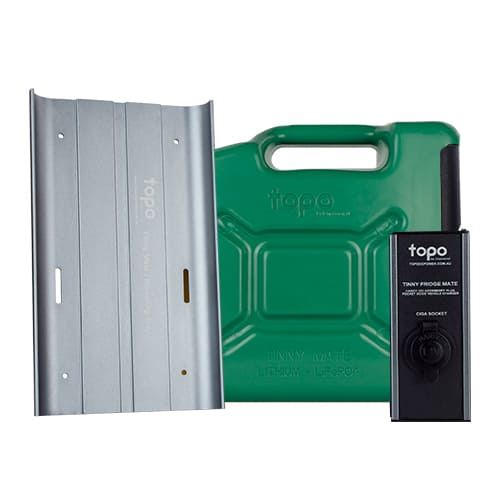

Includes Battery Tray and Set of Connectors

1x User Manual

1 x Tinny Mate + Fridge Mate Pocket 6A DC/DC Charger

DIMENSIONS

H- 240mm
L – 265mm
W – 145mm

FEATURES

  • A TRUE PLUG & PLAY PORTABLE POWER SOLUTION
  • PATENT PENDING & INTERNATIONAL REGISTERED DESIGN
  • AUSTRALIAN OWNED MADE AND DESIGNED
  • A GRADE LIFEPO4, PRISMATIC CELLS- IEC 62619 COMPLIANT
  • POWERFUL AND PORTABLE, 12V/100AH , 1280Wh @ 10Kg’s
  • SEALED IN A HIGH IMPACT, UV RESISTANCE, WATERPROOF CASING
  • ACCEPTS 3 WAY CHARGING MAINS, SOLAR, VEHICL

CONNECTOR AND DISPLAY

Power

  • Waterproof On/Off button switch
  • Display : Waterproof LCD display
  • Built-In, State of Charge monitoring
  • Built-In, Volt & Amp monitoring
  • Built-In, Charge & Discharge status

Input / Output

  • Anderson 12V / 50A (Grey)
  • Anderson 12V / 50A (Grey)
  • Anderson 12V / 120 A (Grey)

ELECTRICAL PARAMETERS

  • Nominal Voltage 12.8V DC
  • Rated Capacity 100Ah
  • Energy 1280Wh
  • Cycle life >3000 cycles @ 1C, 80%DOD
  • Self Discharge < 5% per month
  • Battery in Series / Parallel 2S/2P
  • IP Rating IP66

DISCHARGE PARAMETERS

  • Standard Continuous Discharge Current 50A -100A Max
  • Pulse Discharge Curent 200A (<30Sec)
  • Recommended Volt. Disconnect 12V
  • Discharge Temperature -20 – 60°C
  • BMS Low Volt. Cut-off 11V DC
  • BMS High Temperature cut-off 65°C

CHARGE PARAMETERS

  • Standard Charge Current 50A – 100A Max
  • Recommended Volt. Disconnect 14.2V DC
  • Charging Temperature 0 – 55°C
  • BMS High Volt. Cut-off 14.2V DC
  • BMS High Temperature cut-off 65°C

READY FOR ADVENTURE!

BUILT IN PROTECTION

PUNCHES ABOVE ITS WEIGHT

FEATURES

  • A TRUE PLUG & PLAY PORTABLE POWER SOLUTION
  • PATENT PENDING & INTERNATIONAL REGISTERED DESIGN
  • AUSTRALIAN OWNED MADE AND DESIGNED
  • A GRADE LIFEPO4, PRISMATIC CELLS- IEC 62619 COMPLIANT
  • POWERFUL AND PORTABLE, 12V/100AH , 1280Wh @ 10Kg’s
  • SEALED IN A HIGH IMPACT, UV RESISTANCE, WATERPROOF CASING
  • ACCEPTS 3 WAY CHARGING MAINS, SOLAR, VEHICL
