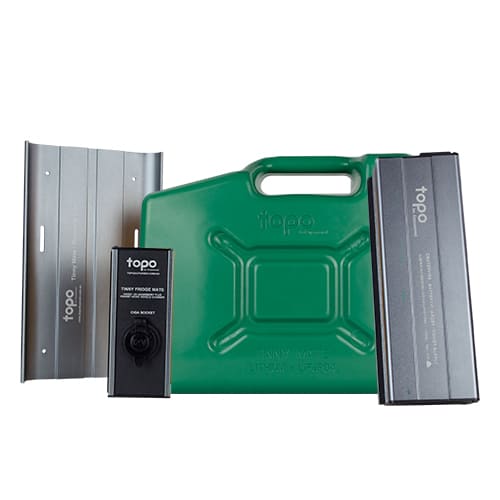

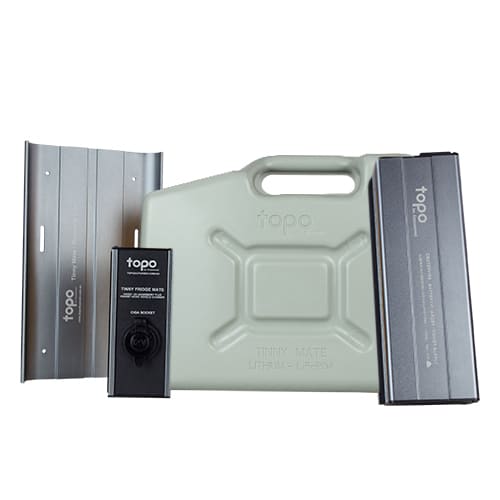

Tinny Mate + 10A Mains Charger + Fridge Mate Pocket 6A DC/DC Charger

DIMENSIONS

H- 240mm
L – 265mm
W – 145mm

FEATURES

• A TRUE PLUG & PLAY PORTABLE POWER SOLUTION
• PATENT PENDING & INTERNATIONAL REGISTERED DESIGN
• AUSTRALIAN OWNED MADE AND DESIGNED
• A GRADE LIFEPO4, PRISMATIC CELLS- IEC 62619 COMPLIANT
• POWERFUL AND PORTABLE, 12V/100AH , 1280Wh @ 10Kg’s
• SEALED IN A HIGH IMPACT, UV RESISTANCE, WATERPROOF CASING
• ACCEPTS 3 WAY CHARGING MAINS, SOLAR, VEHICL

CONNECTOR AND DISPLAY

Power

• Waterproof On/Off button switch
• Display : Waterproof LCD display
• Built-In, State of Charge monitoring
• Built-In, Volt & Amp monitoring
• Built-In, Charge & Discharge status

Input / Output

• Anderson 12V / 50A (Grey)
• Anderson 12V / 50A (Grey)
• Anderson 12V / 120 A (Grey)

ELECTRICAL PARAMETERS

• Nominal Voltage 12.8V DC
• Rated Capacity 100Ah
• Energy 1280Wh
• Cycle life >3000 cycles @ 1C, 80%DOD
• Self Discharge < 5% per month
• Battery in Series / Parallel 2S/2P
• IP Rating IP66

DISCHARGE PARAMETERS

• Standard Continuous Discharge Current 50A -100A Max
• Pulse Discharge Curent 200A (<30Sec)
• Recommended Volt. Disconnect 12V
• Discharge Temperature -20 – 60°C
• BMS Low Volt. Cut-off 11V DC
• BMS High Temperature cut-off 65°C

CHARGE PARAMETERS

• Standard Charge Current 50A – 100A Max
• Recommended Volt. Disconnect 14.2V DC
• Charging Temperature 0 – 55°C
• BMS High Volt. Cut-off 14.2V DC
• BMS High Temperature cut-off 65°C
