LONG RANGE – 144AH SLIMLINE LITHIUM DUAL BATTERY SYSTEM PACKAGE

$2,350.00

Tax included. Shipping calculated at checkout.

TOPO DC POWER
Model: T-LRR-144AH-M10
144AH Long Range Lithium | Built-in 40A DC/DC | Built-in Solar Controller | Wireless Ready

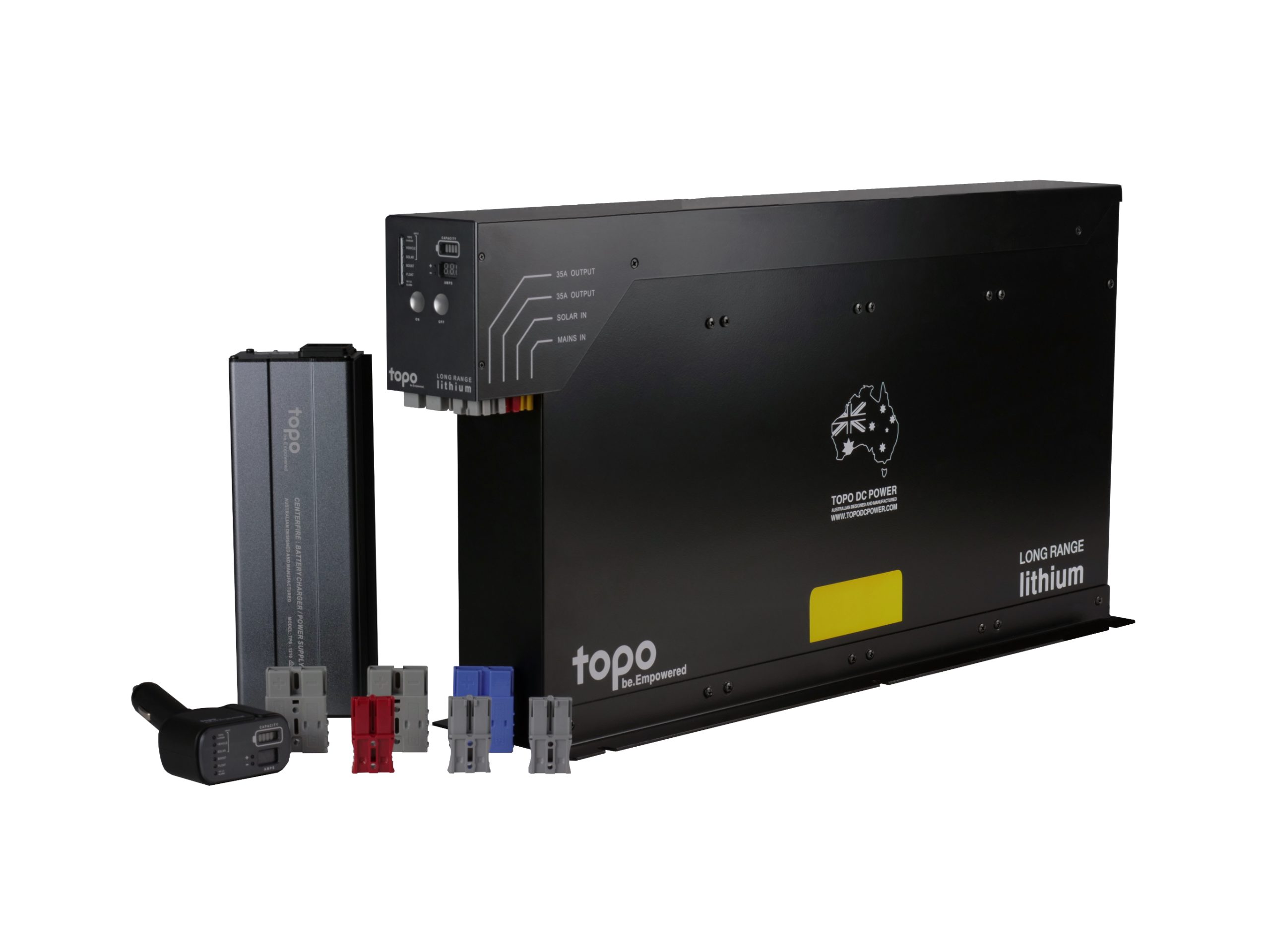

Included:
Wireless Monitor + 10A Mains Charger + Connector Set

1x User Manual

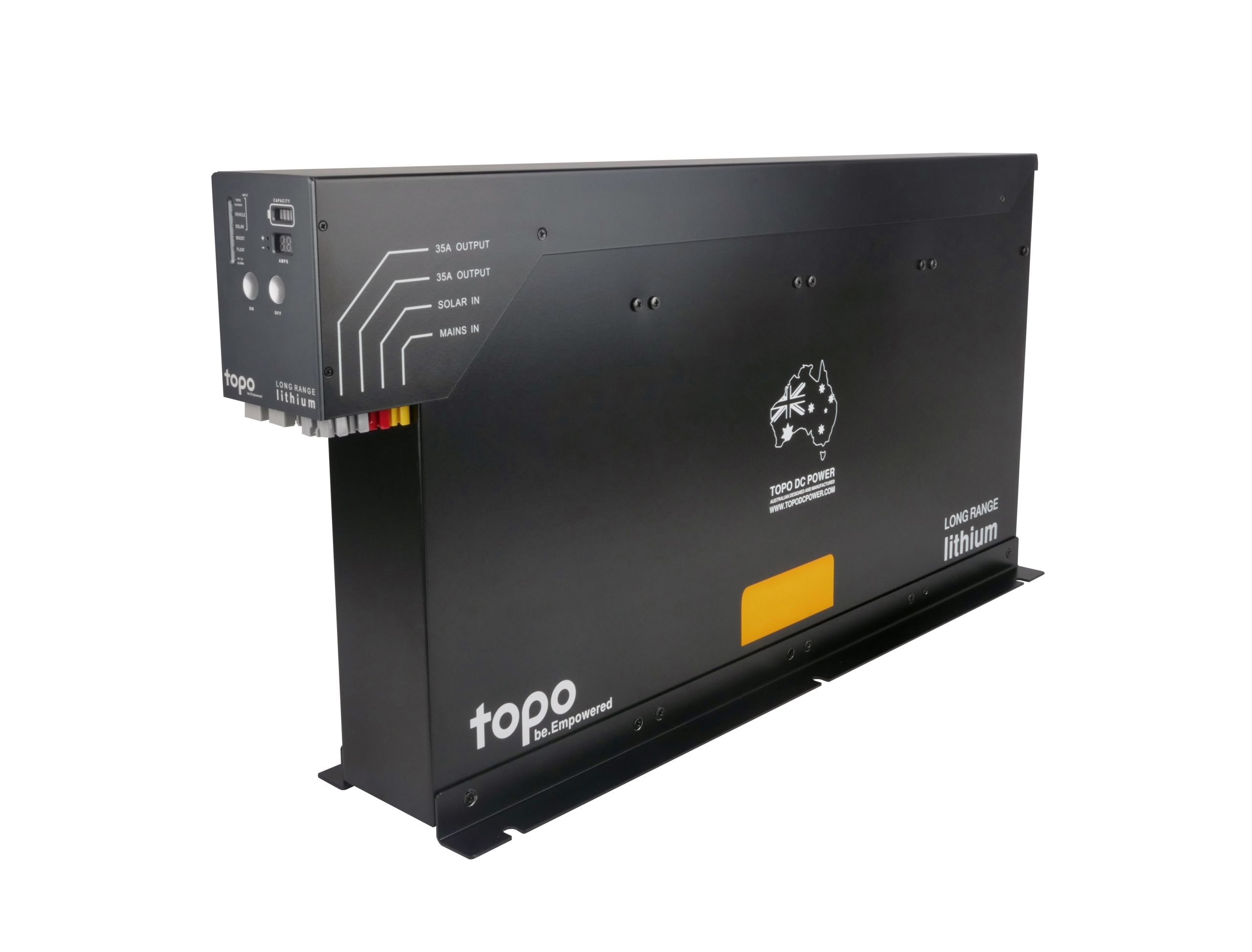

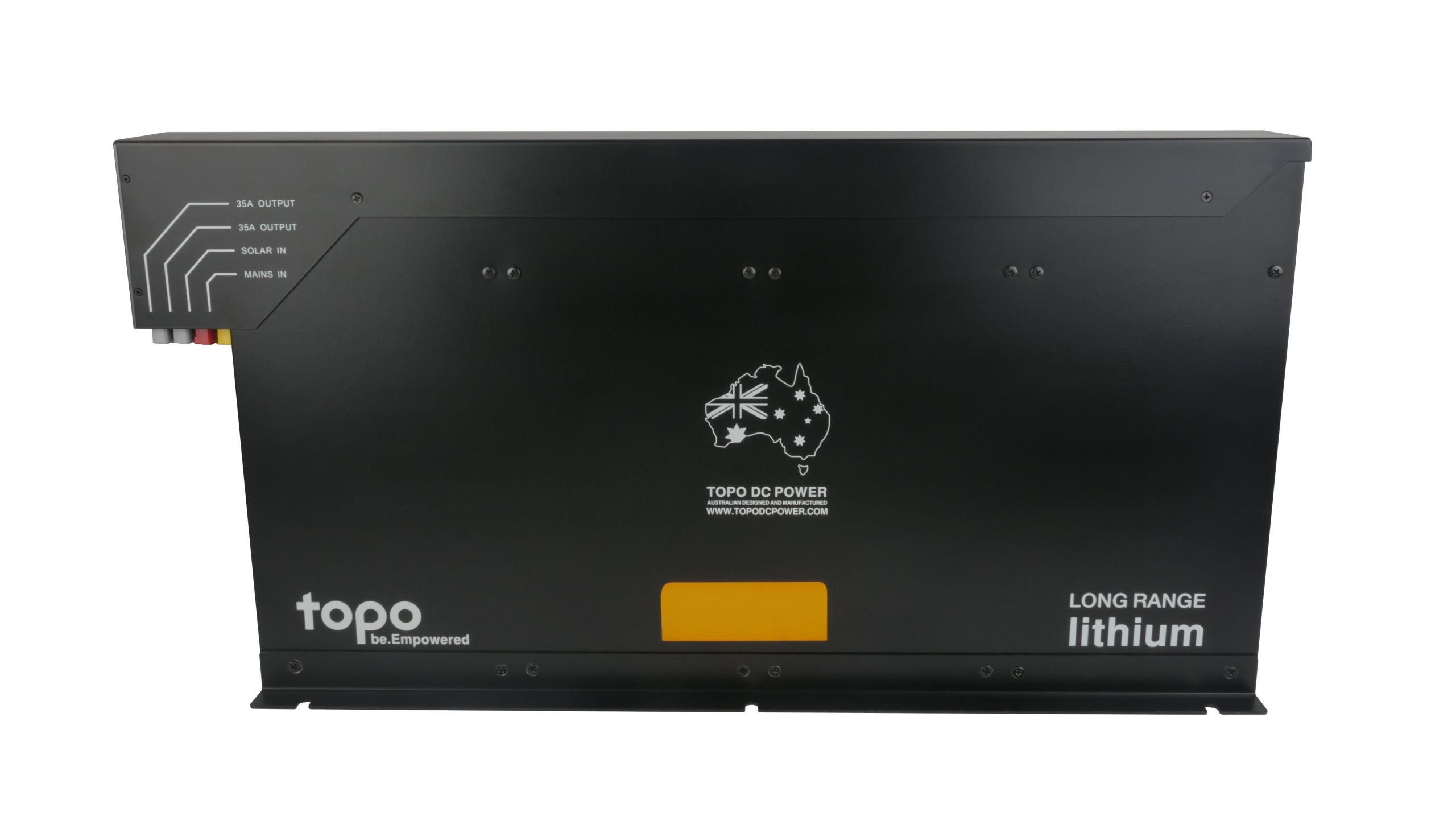

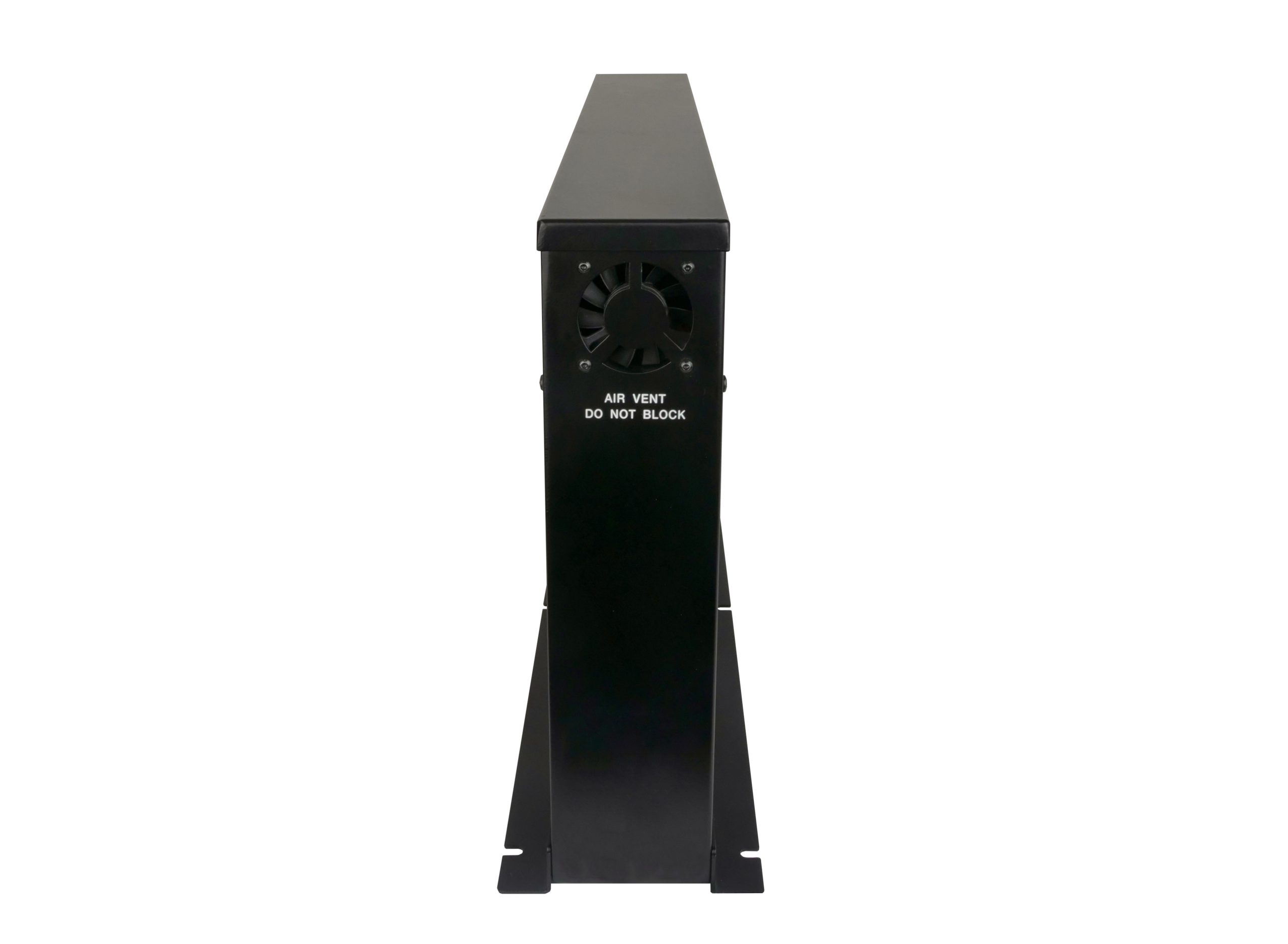

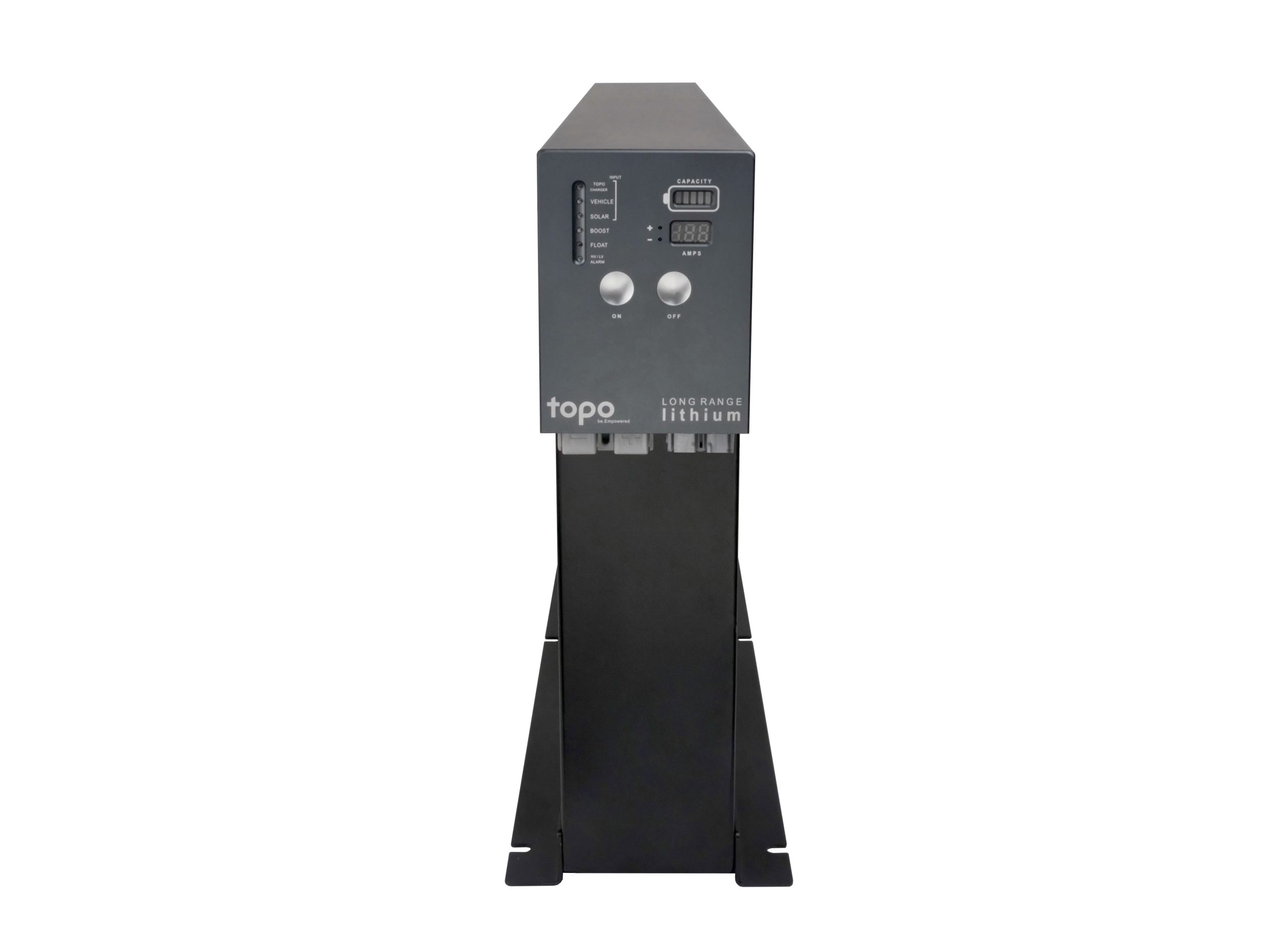

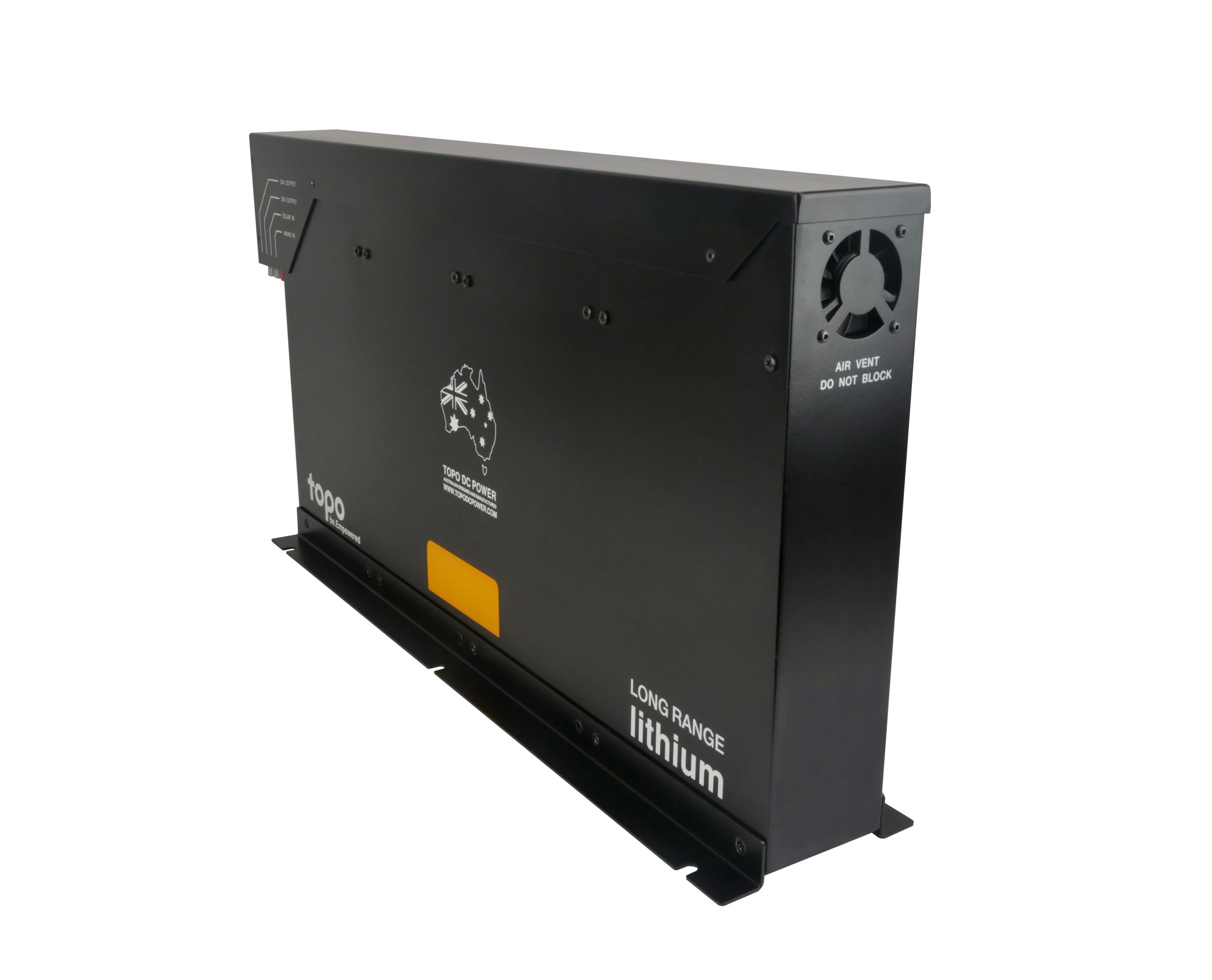

1 x Topo 12V/ 144Ah Long Range Lithium,
Model: T-LRR-144AH-WR

1x Topo Wireless Monitor
     Model: T-12V-WBM

1x Topo Centerfire – Battery charger/ Power supply
Model: T-PS-12-10

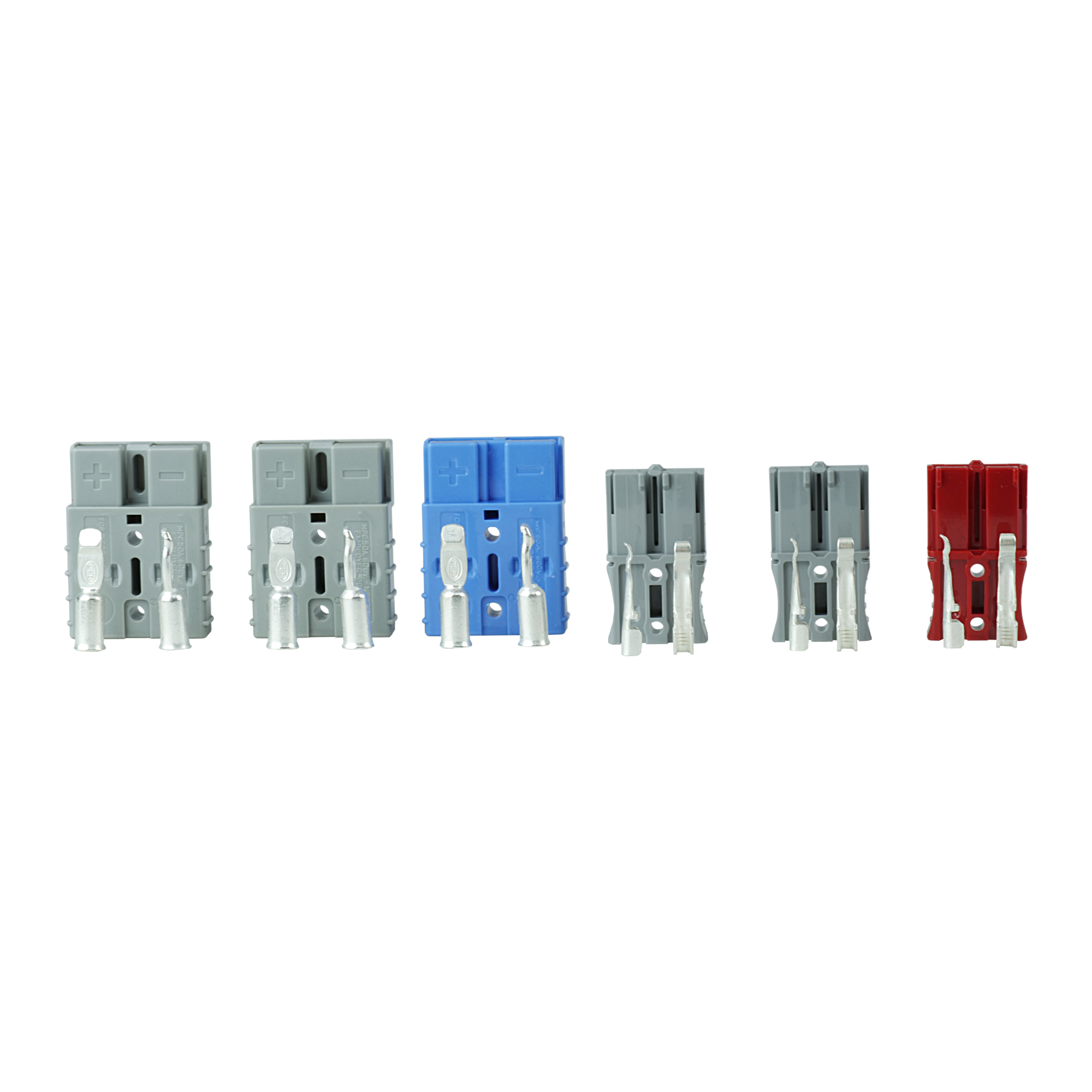

1 x Set of Connectors to suit inputs and outputs,
2x 50A Grey Anderson type Connector ( output)
2x 35A Grey Mini Connector ( output)
1x 35A Red Mini Connector ( Solar input)
1x 50A Blue Anderson type connector( Vehicle input)

1x 80A Dual Midi Fuse ( Vehicle Charge connection)

Part Number

T-LRR-144AH-WR

Dimensions (L x W x H)

63cm x 12cm x 31cm ( With Mounting Brackets)

63cm x 8cm x 31cm ( Mounting Brackets facing inwards)

Weight

21kg

Battery

LiFeP04

Capacity

12v 144AH (1728Watts)
Part Number T-12V-WBM
Supply Voltage 12V DC
Overall Dimensions (Lx W x H) 12cm x 6cm x 3.3cm
Weight 66 Grams
Part Number T-PS-1210
Dimensions 24cm x 8cm x 5cm
Weight 0.7Kg
Input 240V AC
Output 15V DC/ 10A

For additional product features and specifications, please contact us.

STAY OUT LONGER

Built for everyday use, the Topo DC Power’s Plug & Play lithium power systems are durable, lightweight and sleek design is an ideal way to transport power wherever you’re heading. Equipped with a 12Volt / 144Amp LiFePO4 battery, this portable battery is built to last and comes complete with industry leading safety features.

Its slim design makes it fit easily and nicely behind seats and in canopies gaining valuable storage.

BUILT IN PROTECTION

The latest in mobile power solutions, Built-in a sturdy steel casing and tailored for adventure on and off the trail. Topo’s power management system ensures your battery is protected.

  • Protected from over and undercharging and over-discharging.
  • Built-in Audible alarms.
  • Built-in Automatic High and Low Voltage shutdown.
  • Outputs protected with Magnetic circuit breakers.
  • State of Charge battery monitoring and Net positive/negative amp meter.
  • Individually Colour coded, keyed, and clearly labeled Inputs and Output connections for Vehicle, Solar, Mains charging and 12V Output make it truly Plug and Play.

Draw and charge power from your battery safely and keep your fridge, lights, and accessories powered for longer.

PUNCHES ABOVE ITS WEIGHT

Clearly labeled and colour coded
Inputs
Blue- Vehicle Charge input with built-in 40A DC/DC and Voltage Sense.
Red – Regulated Solar input, up to 25amps
Yellow- To suit Topo’s Mains Chargers

Outputs
Grey –  12V DC Outputs
2x  12V / 50Amp output ( Combined 100 Amp continuous draw)
2x  12V / 20Amp output ( Combined 40Amp draw)

Expandable with included 3 gang Mag Board DC power distribution.

Charge from One or ALL input charging sources simultaneously.

  • Utilise Topo’s built-in 40Amp DC/DC Charger for Vehicle charging. When out on the road where Mains power is non-existent.
  • Topo’s built-in Vehicle voltage sense protects your vehicle starter battery from going flat when connected to vehicle charge.
  • Has a dedicated Solar charge input accepting unregulated solar power source. So you can safely charge, collect and store solar power from the sun when stationary to be used later in the evening.
  • Supplied with Topo’s 10Amp over nighter Mains charger.

LONG RANGE LITHIUM FEATURES

  • A massive 12V / 144Ah (1728 Watt)
  • A long-lasting Lithium Iron Phosphate (LiFePO4)battery,
  • Built-in a tough steel casing,
  • Mounting brackets for easy installation
  • Topo’s inbuilt Vehicle Charge Sense ( Dual battery controller)
  • Topo’s inbuilt 40Amp DC/DC vehicle charger,
  • Topo’s inbuilt solar charge controller input,( Max 25Amps)
  • 12Volt Outputs
    2x 12V 50Amp ( Combined 100Amp draw)
    2x 12V 20Amps ( Combined 40Amp draw)
  • Net Positive or Negative Amp meter
  • State of charge battery capacity monitoring

INCLUDED IN THIS KIT

Includes Topo’s Wireless Battery monitor.
Topo’s innovative Wireless battery monitoring solution is a Plug & Play hands-free design, when paired together with a Wireless Ready Long Range Lithium system enhances the end-user experience. Offering you the convenience to check your battery system condition when fitted out of sight, while in the driver’s seat, as a passenger, or at camp. Simply be in range and plug into any 12Volt Ciga socket without the need of running cables, hardwiring, or the need to use a mobile App.

Includes Topo’s 10A Mains Charger.
Built-in a tough and compact aluminum anodised casing, the Topo mains charger is a  handy addition for overnight powered sites or at home to top up your Topo lithium system when Mains 240V AC Power is available.
Also doubles as a 12V Power supply to suit Topo’s Mag Series  Distribution Powerboards.

Includes Topo’s MAG Series 2 Way Magnetic Distribution Power Board.
Topo’s MAG Series gives you the freedom to extend and take your power with you, from your vehicle to camp to vessel and surface mount practically anywhere.
Just Plug & Play from your 12volt power source. A simple, and smarter solution for complicated installation and wiring problems.
MAG series uses a strong magnetic mounting system making it functional, versatile, and practical. Stick it to Topo’s Lithium power systems or to any ferromagnetic surface.


The Long Range lithium system is simply packed full of features, all you need to keep you out powered for longer.

Just Plug & Play, keeping your 12 Volt power system, easy, neat, and straightforward.
